Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Gate
  • Pressure: Medium Pressure
  • Power: Manual
  • Material: Casting
  • Temperature of Media: Medium Temperature
  • Media: Water
  • Port Size: DN40-DN1200
  • Place of Origin: Hebei, China (Mainland)
  • Model Number: F4
  • Brand Name: Shengfeng
  • Application: General
  • Certificate: ISO9001
  • Body material: GGG50
  • Connection: Flanged end
  • Design: DIN3352
  • Face to Face: DIN3202
  • Disc: GGG50+EPDM
  • STEM: SS420
  • NUT: BRASS
  • PAINT: Epoxy coating
  • Standard: DIN F4

Packaging & Delivery

Packaging Details wooden cases
Delivery Time 15 days

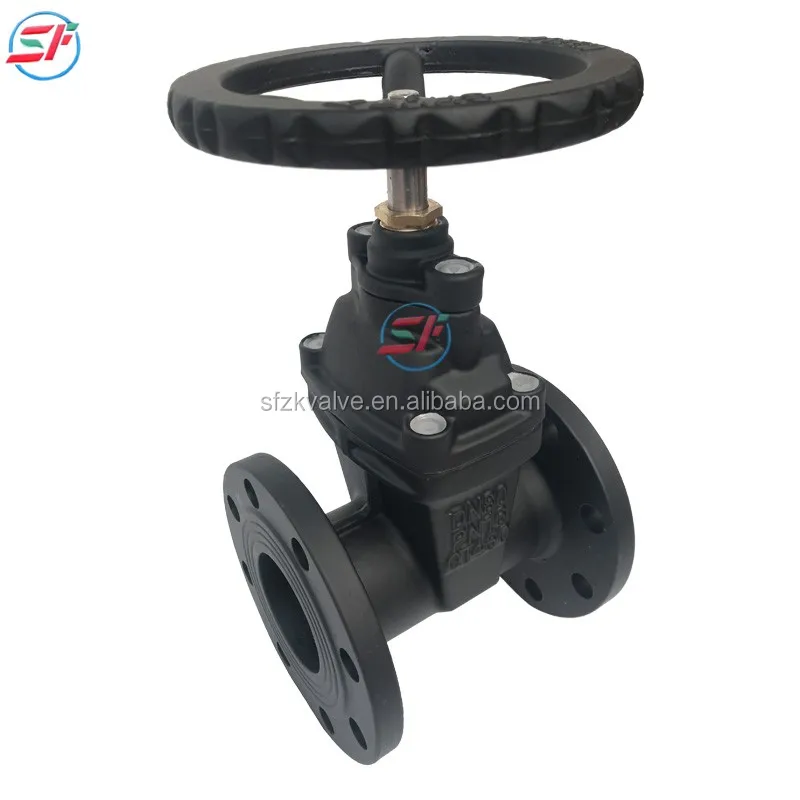

Product Description

Product introduction:
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Characteristics:
1. The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2. Both gate and aluminum bronze bearing are in in aid design good self lubrication, high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3. Rubber wrapped gate anti-corrosion, good tightness.
4. Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5. The body is designed without gate slot, the smooth passage will not get impurities filling up , more applicable for sewage working condition.
6. The integral seal works raliably. For the high pressure seal, leaving zero leakage under1.5 times nominal pressure and ,for the low pressure one ,under 0.02Mpa.

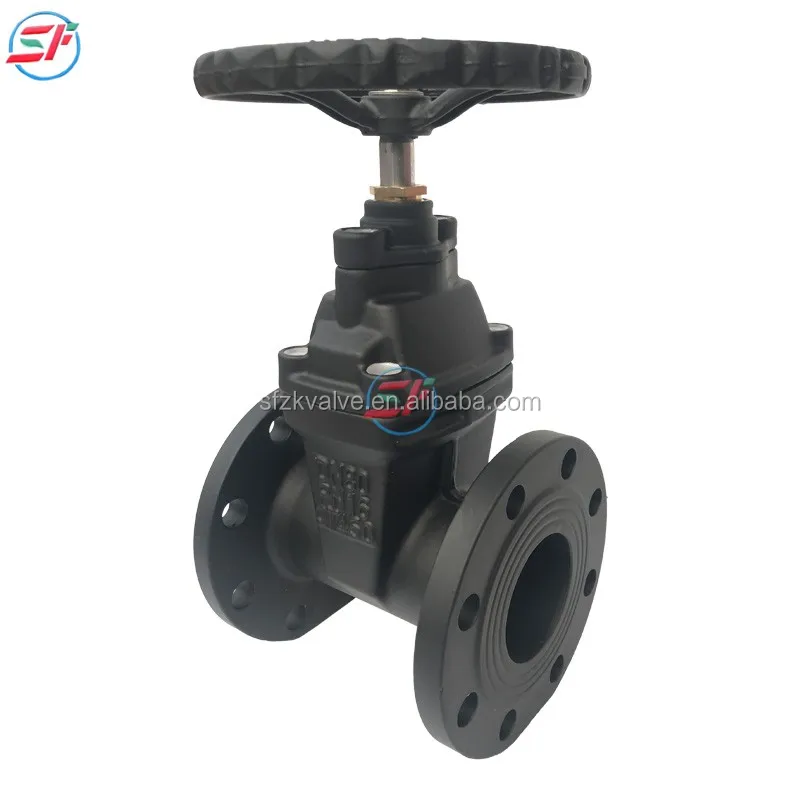

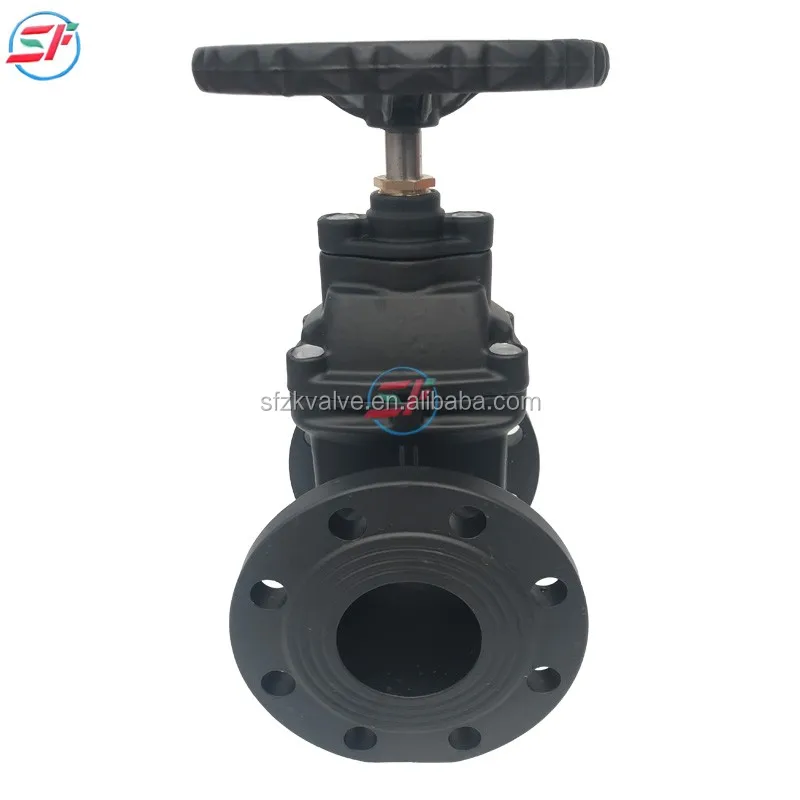

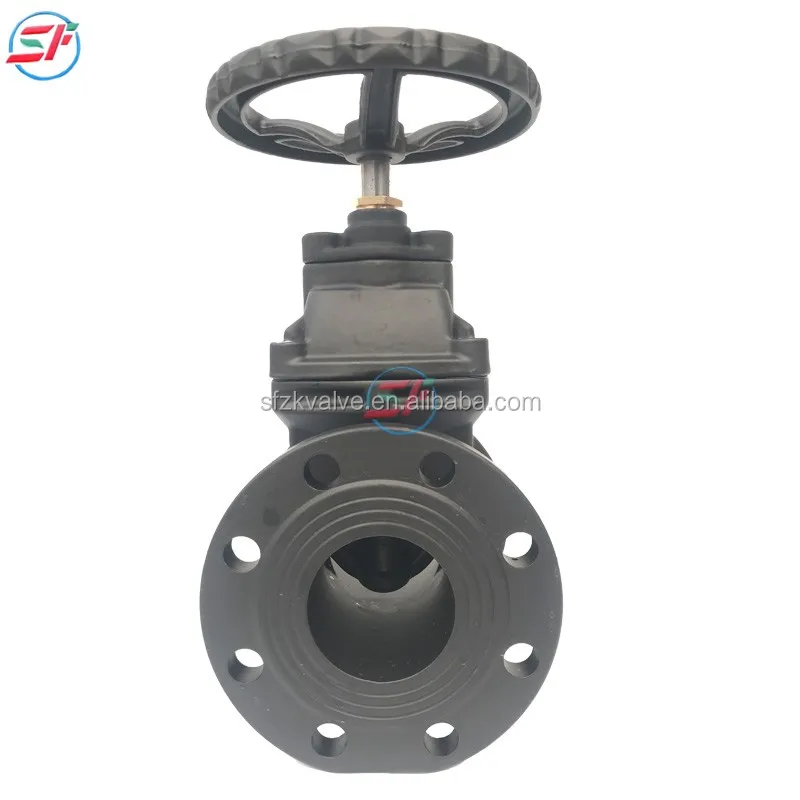

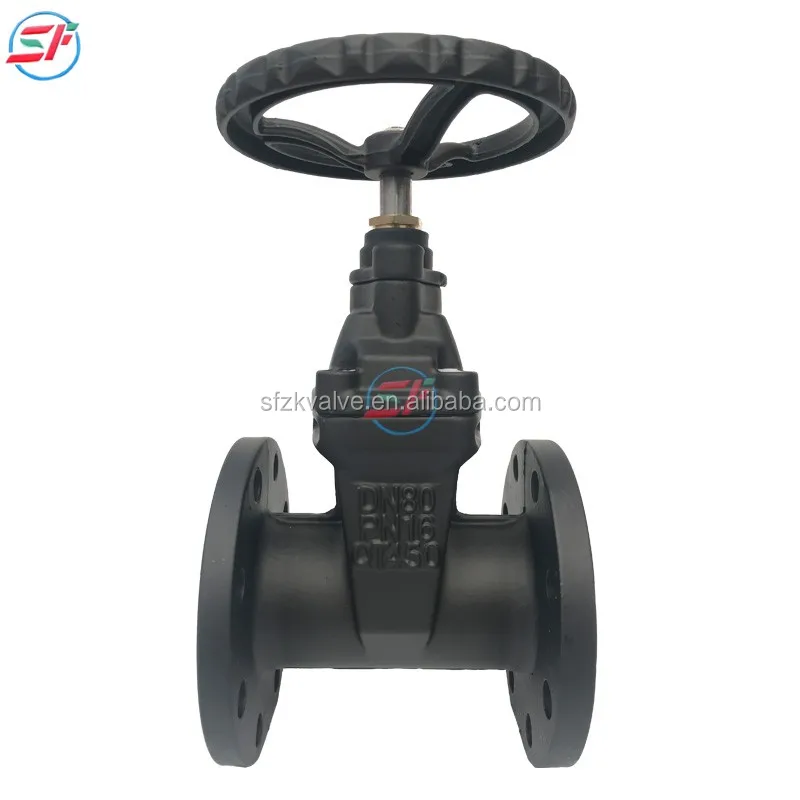

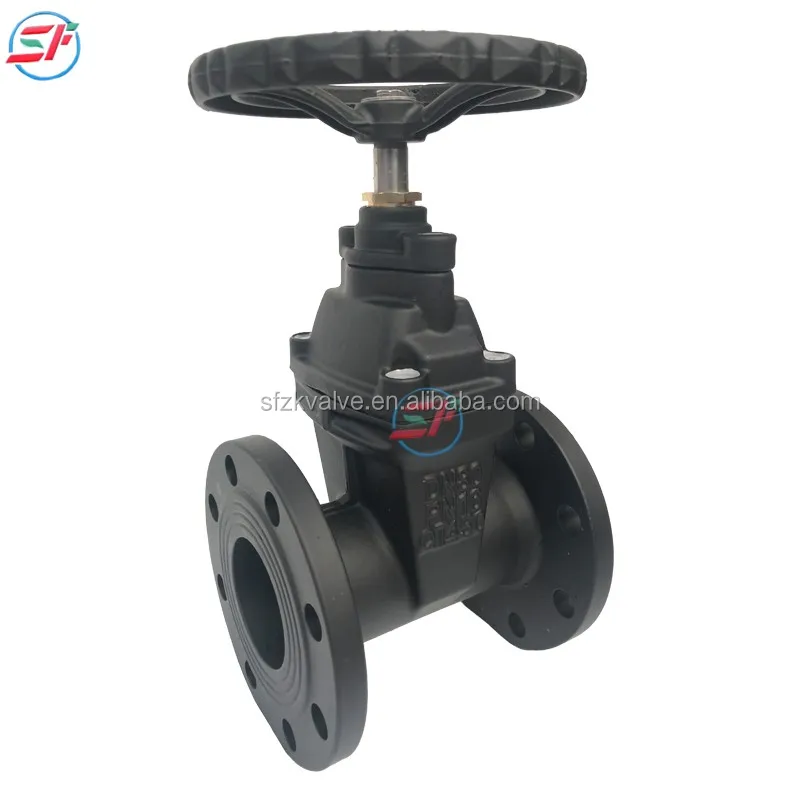

Detailed Images

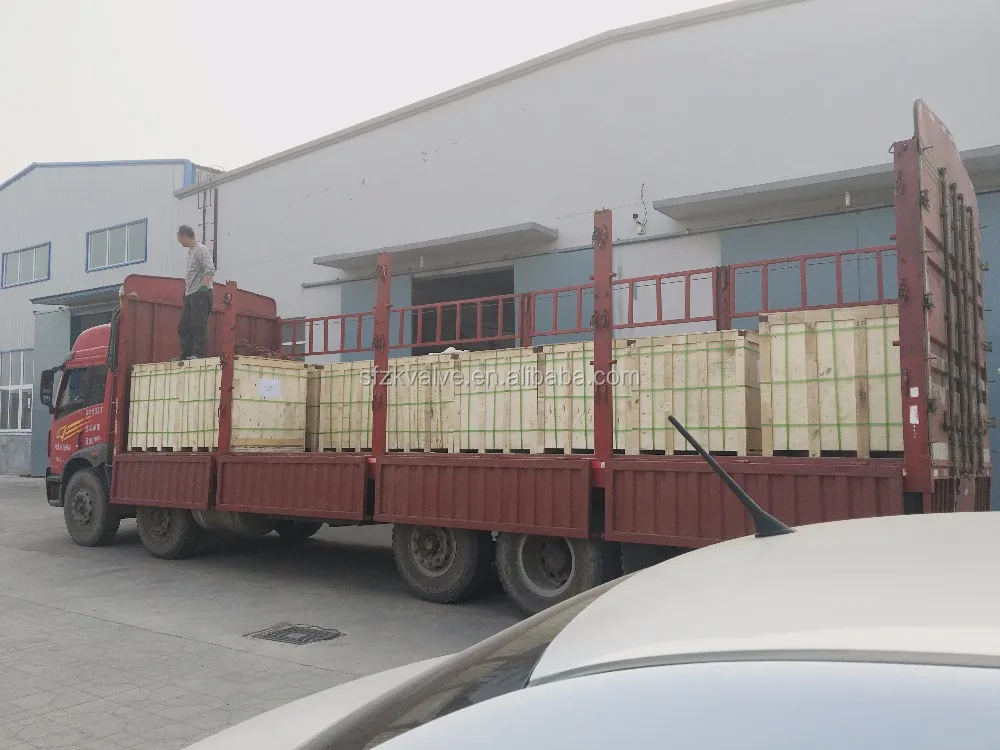

Packing & Delivery

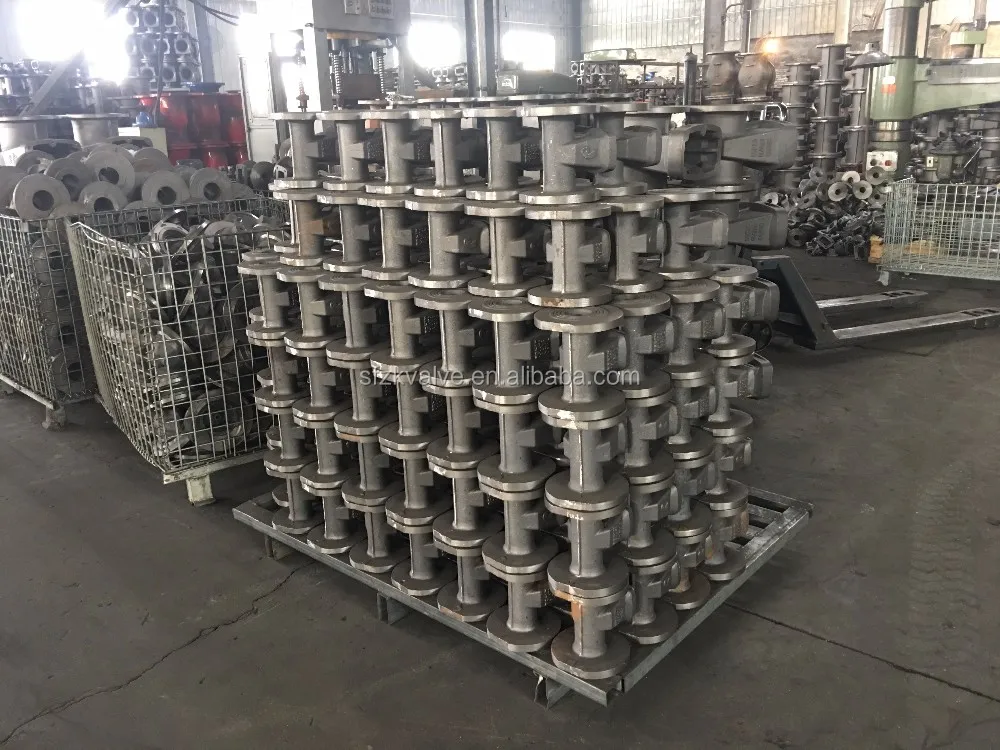

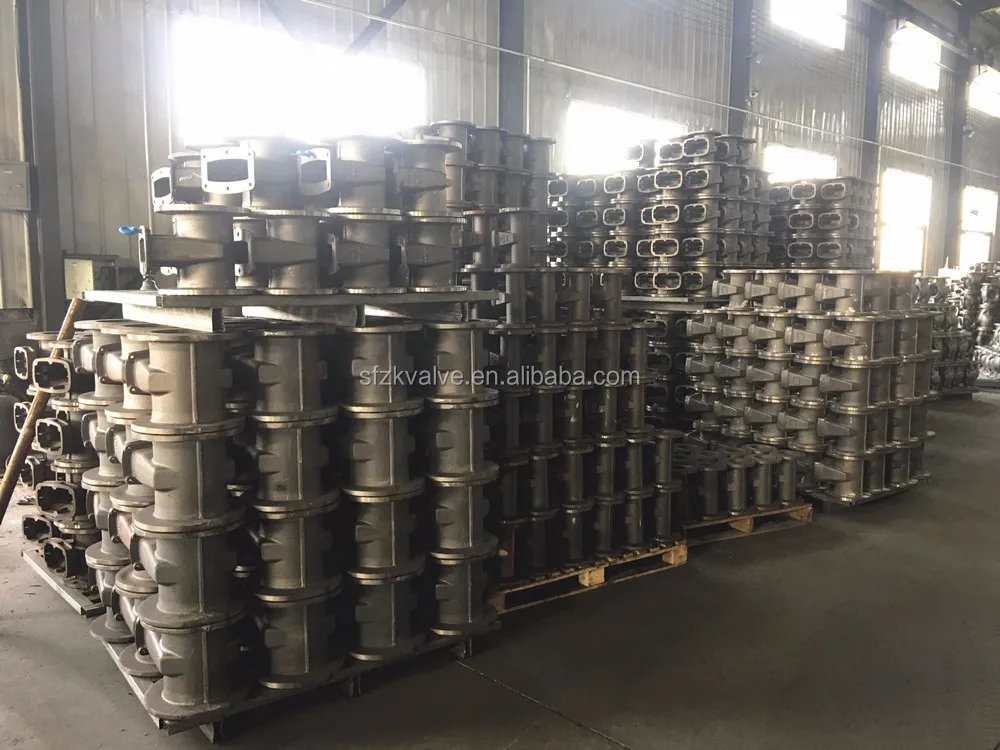

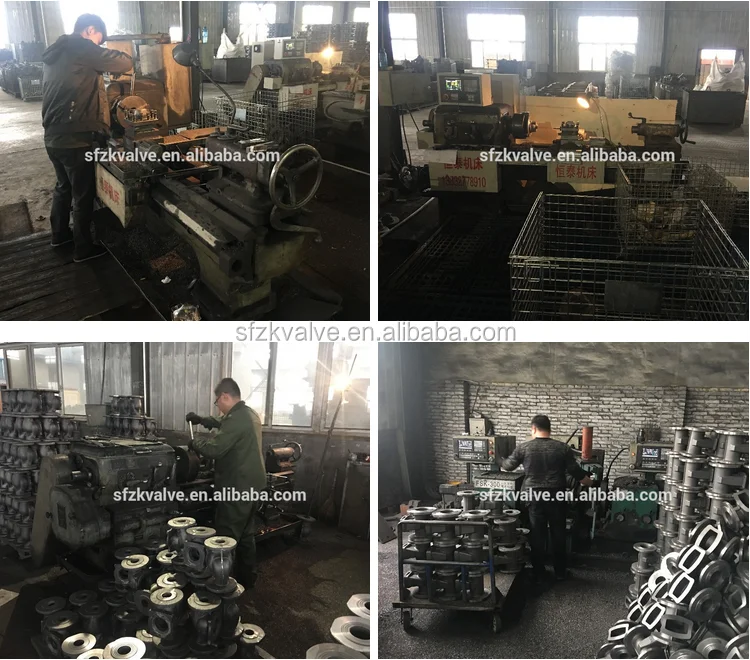

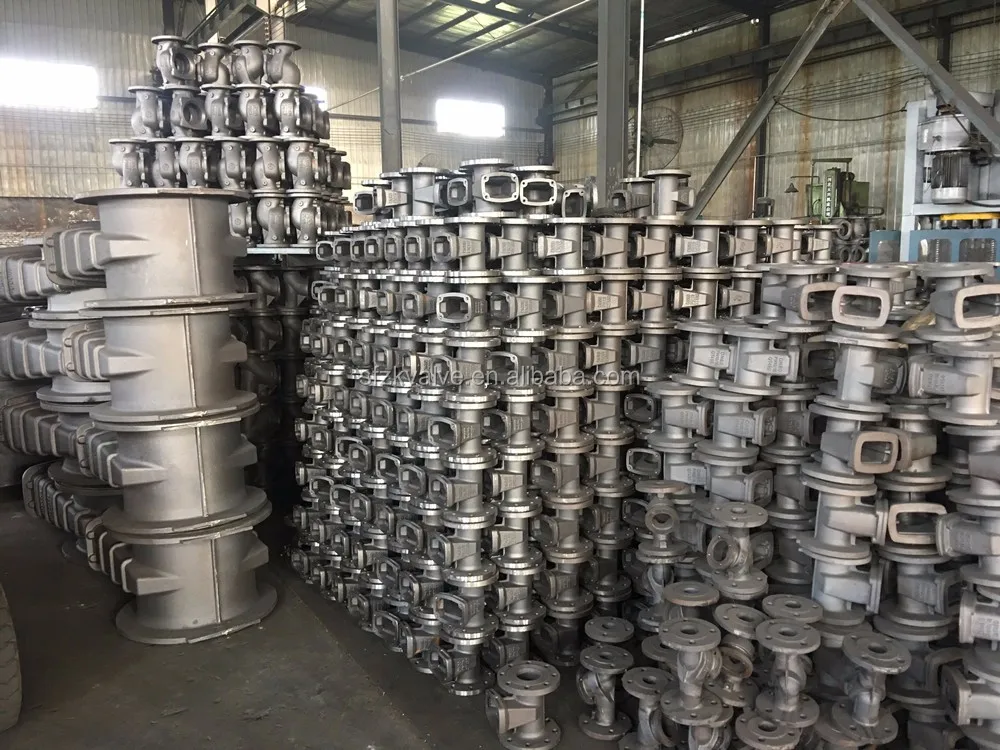

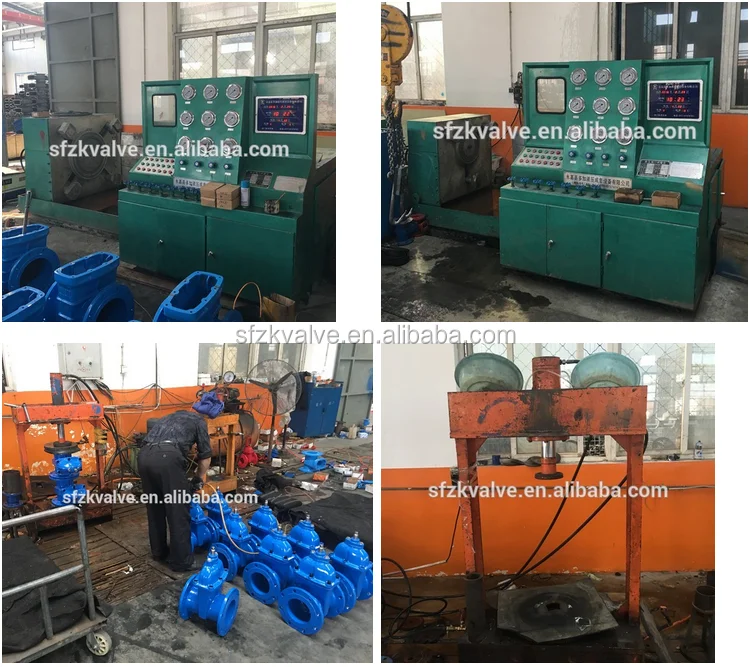

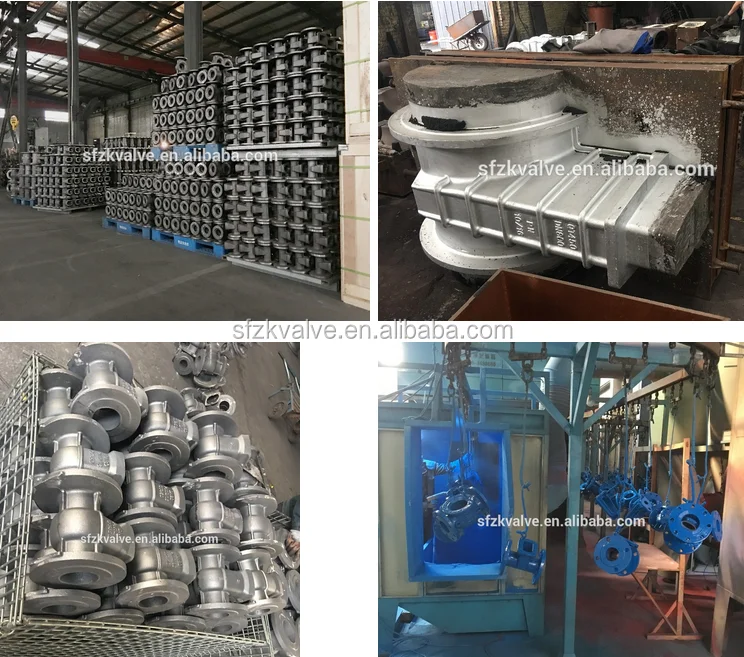

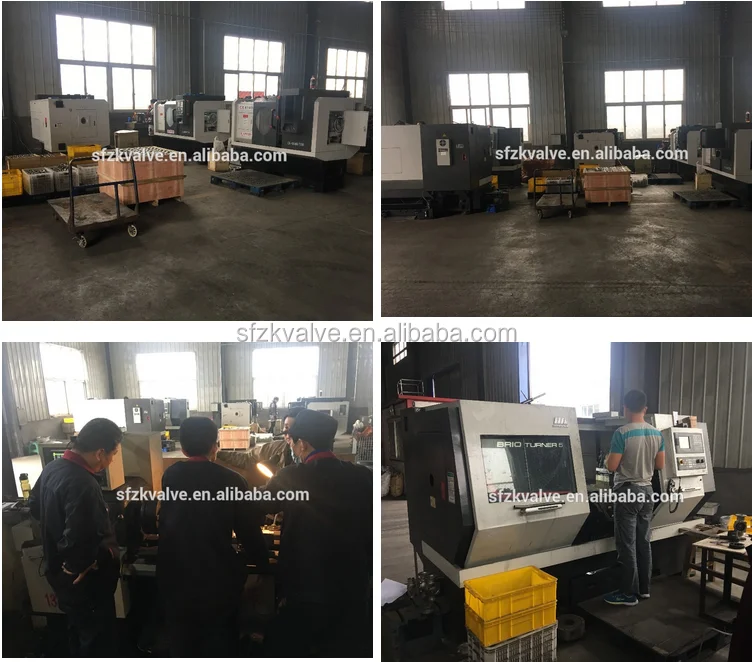

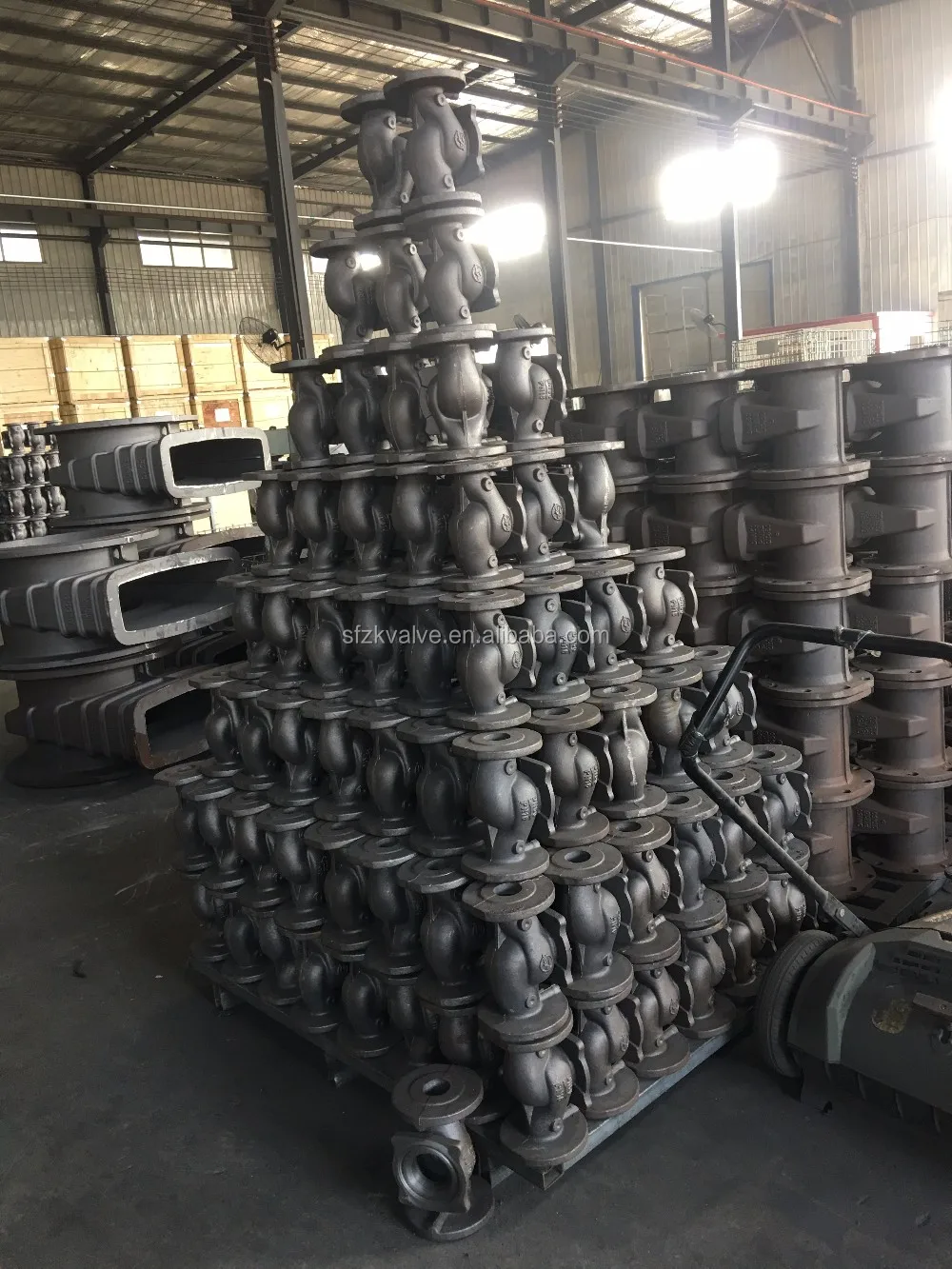

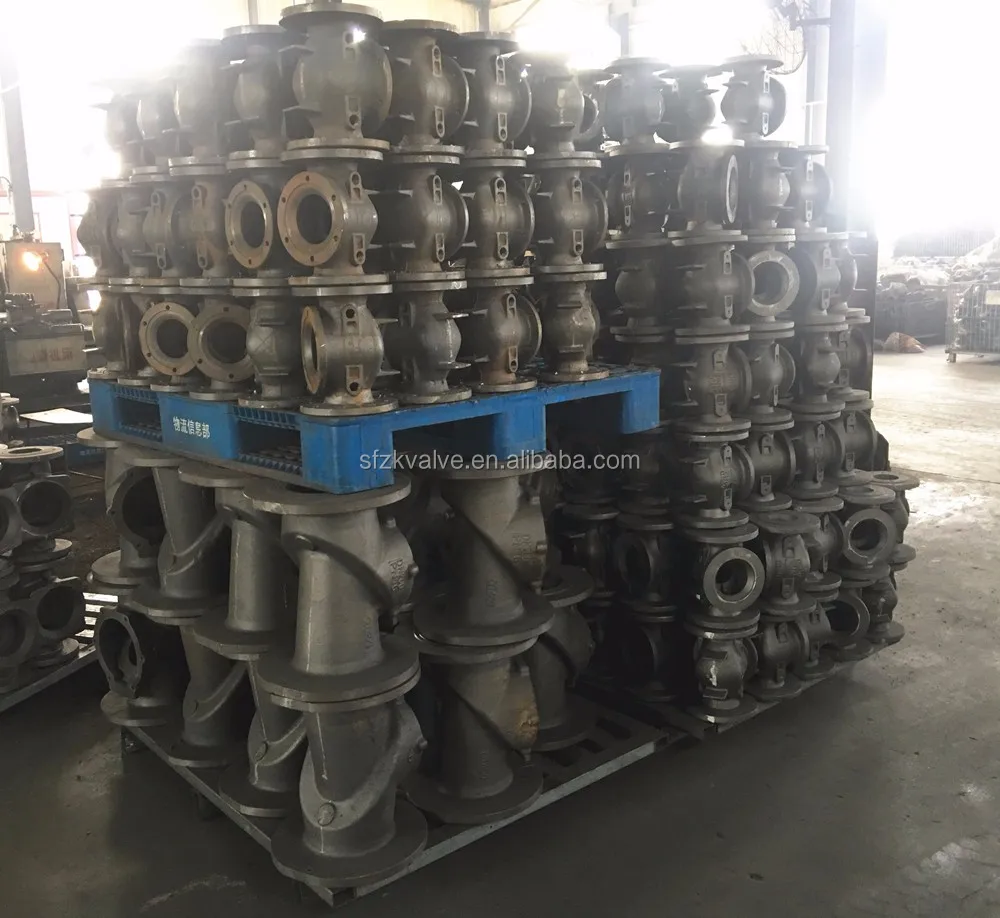

WORKSHOP PHOTO
Exhibition photo
visit factory

How to reach our factory:
by plane:
From Beijing airport:240kms,3 hours by driving.
From Tianjin airport:150kms, 2 hours by driving.
By Train:
From beijing South railway station:224Kms, 1 hours
From Shanghai Hongqiao railway station:1167Kms, 4.5 hours
By Car:
From CangzhouXi railway station:45kms, 40 minutes.
Our address:Botou Industry Park,Cangzhou City,Hebei Province ,China
contact person to pick you up from air port or anyplace in China,please call alan:+8615831888892
you can add my whatsapp:+8615831888892
you can add my wechat:885893
you can call me:0086-15831888892

Botou shengfeng auto-control valve co., LTD was founded in 1995, located in the "foundry Town" of China - Botou .
Botou shengfeng auto-control valve research and development, production and sales business AS one, production standard coverage of the British standard (BS), German standard (DIN), AWWA, Australia standard (AS), non-standard (SABS) and Chinese standard (GB). With 10 years of experience in foreign trade sales, we have exported more than 70 countries and regions such as Europe, America, Middle East and Australia.
The company has a high quality professional design team, has a special invention patent more than 20. At present the company's own research and development production of large diameter intelligent water meter valve control device based on solar power and CyFi communications technology of valve control device, intelligent electric control valve, manual emergency water supply motor valve with low power consumption, low power consumption of electric valve, low power consumption and energy saving electric ball valves, opened a new chapter in the intelligent control, intelligent control valve industry leader.
